Hydraulic Clamps

OMS hydraulic clamps

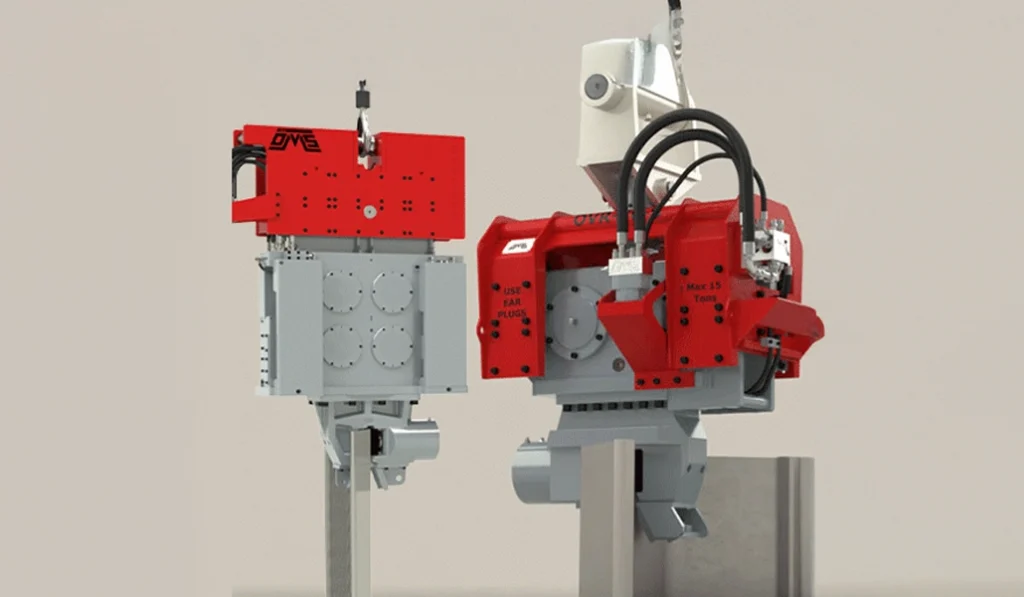

OMS hydraulic clamps provide a safe connection between the vibratory piling machine and the pile by using a piston locking system. They are manufactured from special alloy casting steel and have two gripping jaws fixed and moveable. Moveable jaw is connected to hydraulic cylinder with bolts. This cylinder operated by pressured oil up to 350 bar. With the help of pilot operated check valve, keeps the clamp cylinder under pressure. Hydraulic cylinder is controlled by control pendant or control panel. SCN clamps are used to drive or extract sheet beams and double or single sheet piles. KCN Clamps are used for tube piles. ACN clamps are used for wooden piles.

Get A Free Quote

KCN SERIES

SCN SERIES

“H” Type Caisson Beam Series

“T” Type Caisson Beam Series

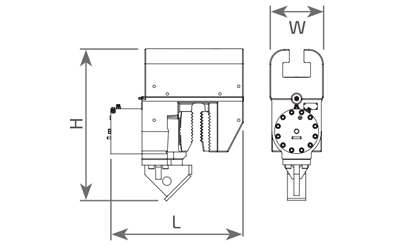

Technical Specifications – KCN Series
Technical Specification	KCN 40	KCN 60	KCN 90	KCN 120	KCN 185
Clamping Force (kN)	425×2	643×2	890×2	1216×2	1858×2
Weight (kg)	185×2	307×2	538×2	948×2	1164×2
Working Pressure (bar)	320	320	350	320	350
L (mm)	566	599	725	894	913
W (mm)	200	250	292	330	370
H (mm)	507	601	809	862	996

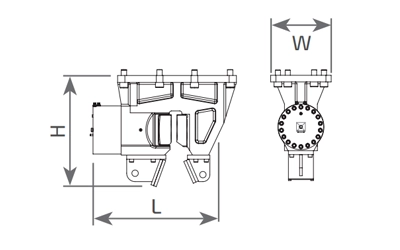

Technical Specifications – SCN Series
Specification	SCN 20	SCN 30	SCN 60	SCN 75	SCN 100	SCN 120	SCN 165	SCN 200	SCN 350
Clamping Force (kN)	203	304	643	814	1005	1216	1700	2262	3560
Weight (kg)	88	192	327	502	620	851	866	1195	2590
Working Pressure (bar)	320	320	320	320	320	320	320	320	350
L (mm)	407	585	677	799	879	1039	1043	1143	1343
W (mm)	220	230	320	320	320	460	460	460	460
H (mm)	339	448	508	583	631	783	783	904	1134

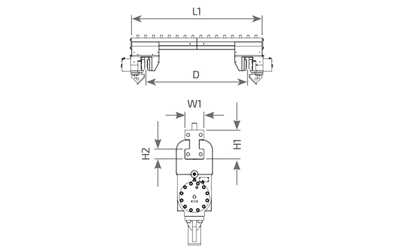

“H” Type Caisson Beam Series
Vibro Hammer	Clamp Type	Diameter D (mm)	L1 (mm)	W1 (mm)	H1 (mm)	H2 (mm)	Weight (kg)
SVR 25 NF	KCN 60	360-1030	949	133	194	66	224
SVR 30 NF	KCN 60	360-1900	2490	133	194	66	300
SVR 50 NF	KCN 90	520-1900	2540	150	226	76	502
SVR 80 NF	KCN 185	600-2100	2970	188	270	88	850
SVR 82 NF	KCN 185	600-1650	2550	188	270	88	820
SVR 120 NF	KCN 185	600-2050	3044	188	285	88	890
SVR 8 VM	KCN 40	350-700	1145	120	324	44	210
SVR 12 VM	KCN 40	350-970	1450	120	324	44	270
SVR 16 VM	KCN 60	360-1020	1600	133	194	66	230
SVR 20 VM	KCN 90	520-1020	1800	150	186	76	300
SVR 24 VM	KCN 90	520-1020	1800	150	186	76	300
SVR 30 VM	KCN 120	620-1020	2300	168	256	81	576
SVR 40 VM	KCN 185	600-1600	2844	188	270	88	708
SVR 50 VM	KCN 185	600-1800	2300	188	240	88	765

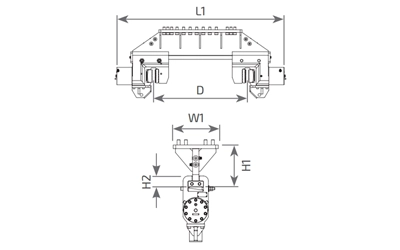

“T” Type Caisson Beam Series
Vibro Hammer	Clamp Type	Diameter D (mm)	L1 (mm)	W1 (mm)	H1 (mm)	H2 (mm)	Weight (kg)
SVR 50 NF	KCN 90	520-3000	4265	280	597	89	2019
SVR 80 NF	KCN 185	600-3000	4309	281	597	88	2018
SVR 120 NF	KCN 185	600-3000	3628	188	590	88	2010
OVR 60 S	KCN 40	350-670	1521	355	322	44	227
OVR 70 S	KCN 40	350-670	1521	355	322	44	273
OVR 80 S	KCN 40	350-970	1826	355	322	44	273
OVR 120 S	KCN 60	360-940	1842	355	344	66	312
OVR 80 VM	KCN 40	350-970	1145	120	324	44	210
OVR 120 VM	KCN 40	350-970	1450	120	324	44	270
