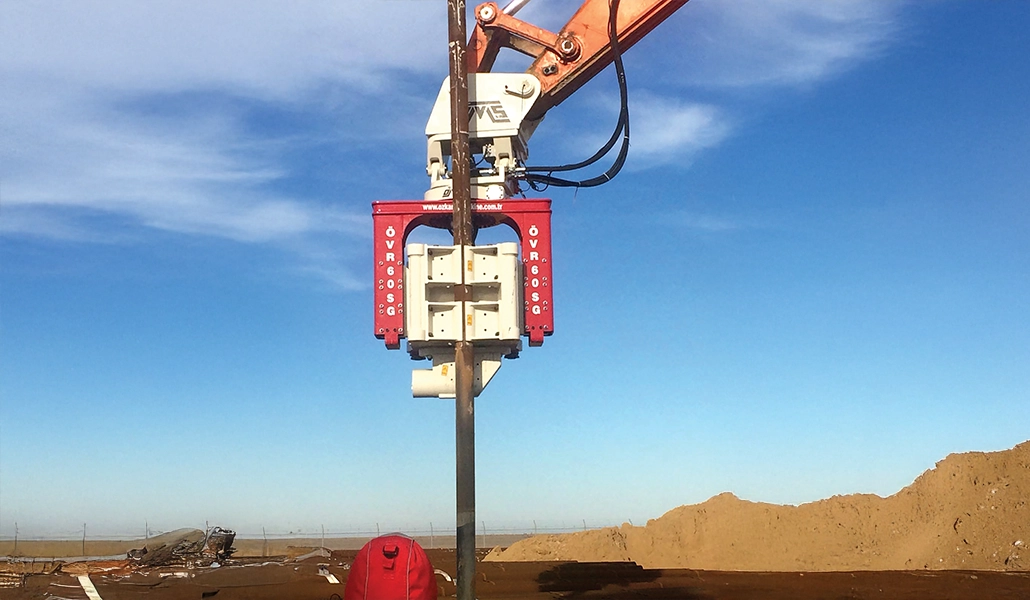

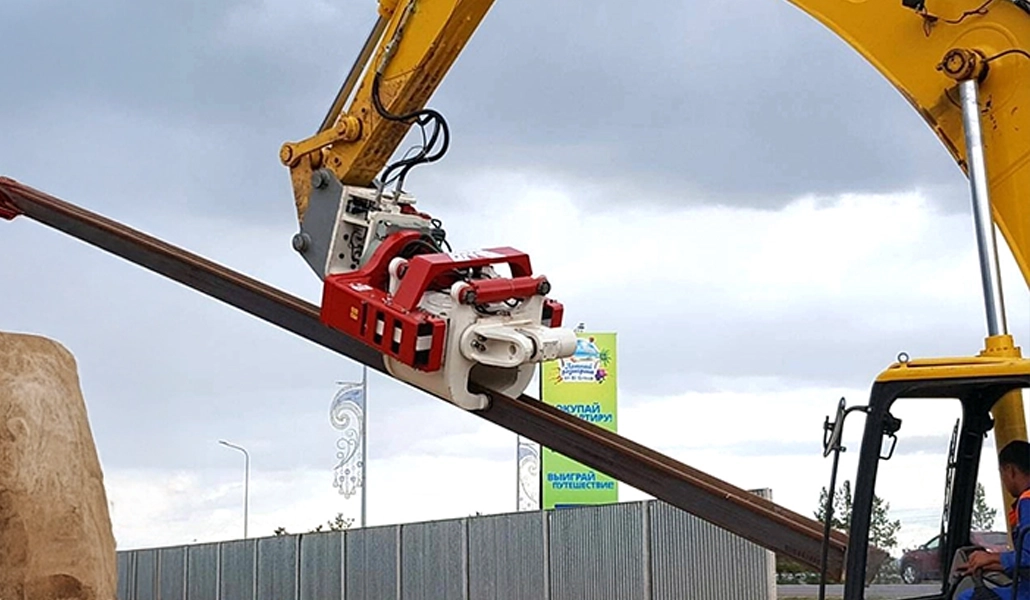

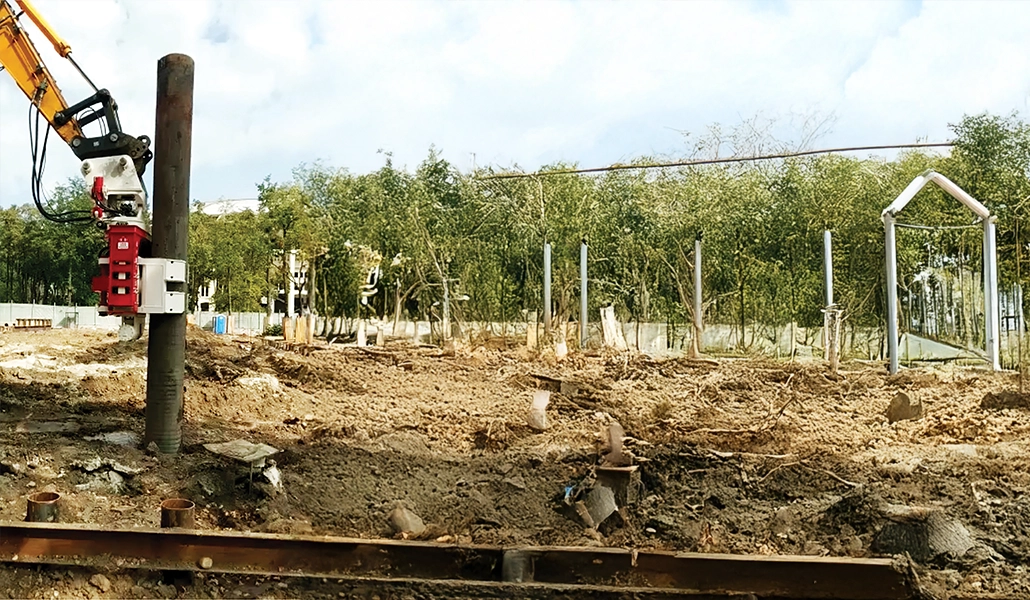

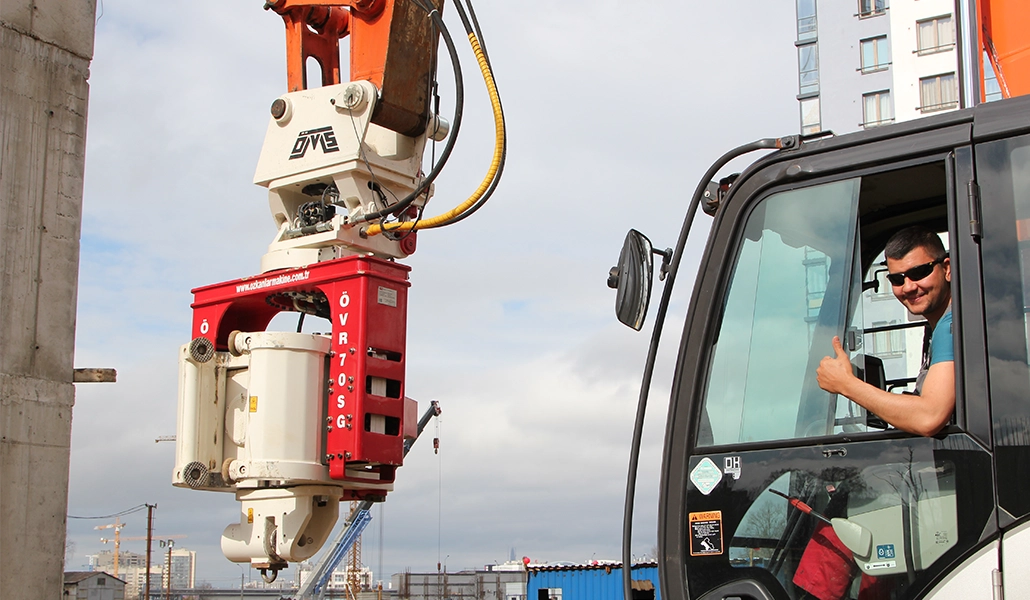

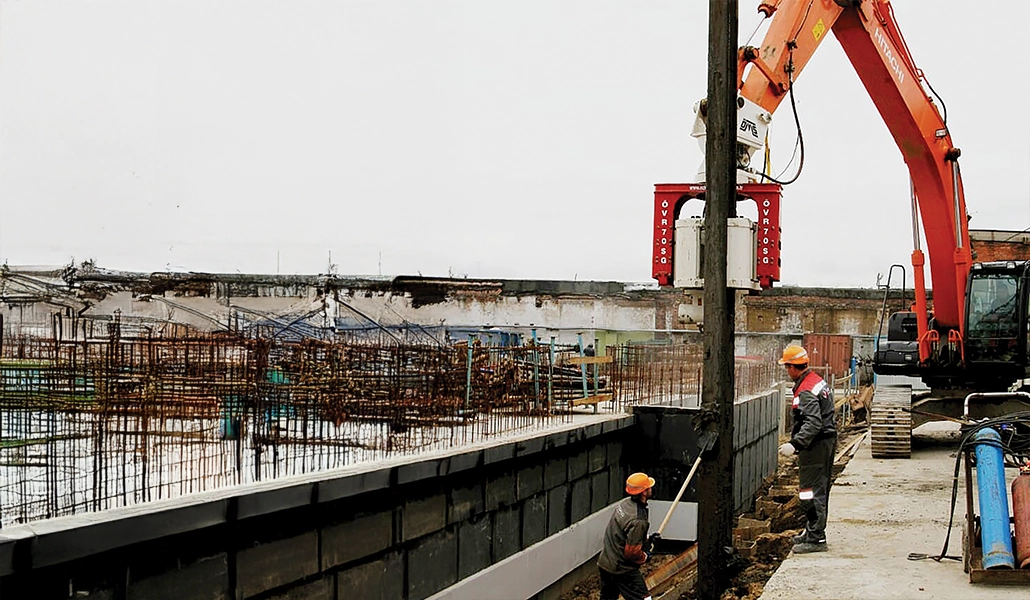

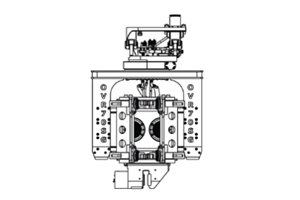

Side Grip Vibro Hammers
SIDE GRIP VIBRATORY HAMMERS
360° Rotating and +/- 30° Tilting Mechanism
OMS Pile Driving Equipment GmbH. provide a large selection of side grip vibro hammer for sale. We also offer side grip vibratory hammer for rental. As we are a manufacturer of vibro hammer and its attachment you can save your time and money. It is also possible to have customised design and colors sheet and tube pile drivers upon special request.

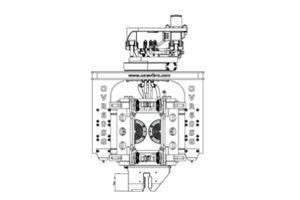

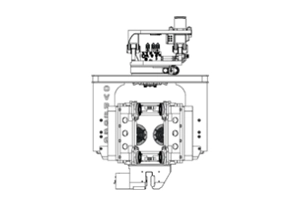

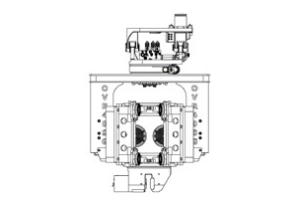

| Technical Spec. | 40 SG-SP / 40 SG-TP | 50 SG-SP / 50 SG-TP | 60 SG-SP / 60 SG-TP | 70 SG-SP / 70 SG-TP |
|---|---|---|---|---|
| Eccentric Moment (kgm) | 4 | 5.2 | 6.3 | 7.3 |
| Centrifugal Force (kN) | 276 | 354 | 434 | 502 |
| Centrifugal Force (kN) Max. | 334 | 428 | 525 | 607 |
| Frequency (rpm) | 2500 | 2500 | 2500 | 2500 |
| Frequency (rpm) Max. | 2750 | 2750 | 2750 | 2750 |
| Oil Flow (lpm) | 100 | 150 | 201 | 233 |
| Oil Flow (lpm) Max. | 110 | 165 | 221 | 256 |
| Power (kW) | 53 | 80 | 107 | 124 |
| Power (kW) Max. | 59 | 88 | 118 | 137 |
| Amplitude (mm) | 5 | 6 | 6 | 7 |
| Pulling Force (kN) | 117 | 117 | 177 | 177 |
| Side Gripping Force (kN) | 439 | 439 | 532 | 532 |
| Bottom Clamping Force (kN) | 292 | 292 | 442 | 442 |
