Stone Column Vibroflot Equipment
OVF Series
Soil Improvement Equipment
Vibro Compaction (Top Feed)
- Tandem Free Hanging
- Single Free Hanging
Vibro Replacement (Bottom Feed)
- Drill Rig / Leader Mounted
- Bottom Feed Free Hanging
- Excavator Mounted Bottom Feed Vibroflot
| Technical Specifications | 300-2 | 300-4 |
|---|---|---|
| Eccentric Moment (kgm) | 2 | 4 |
| Frequency (rpm/Hz) | 3000 / 50 | 3000 / 50 |
| Centrifugal Force (kN) | 200 | 396 |
| Oil Flow (lpm) | 180 | 330 |
| Power (kW) | 105 | 193 |
| 300-2 | 300-4 | |
|---|---|---|
| Weight (kg) | 2100 | 2812 |

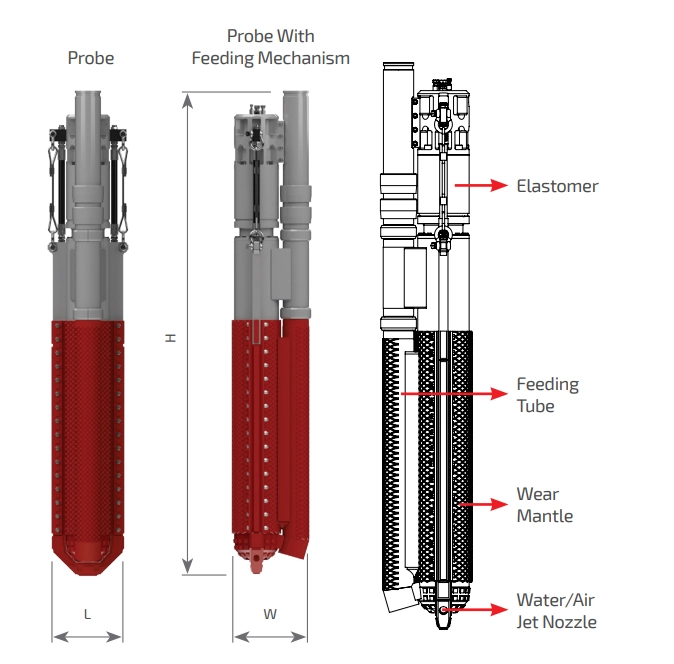

| Height (H) | 3745 | 4436 |
| Width (W) | 590 | 590 |
| Length (L) | 620 | 620 |
| 300-2 | 300-4 | |
|---|---|---|
| Power Pack | PP 218 | PP 320 |
| Output (kW) | 160 | 235 |
